Pictures of Tower Project

I am working on the web pages to take you on a tour of how this Atari Tower was Built.

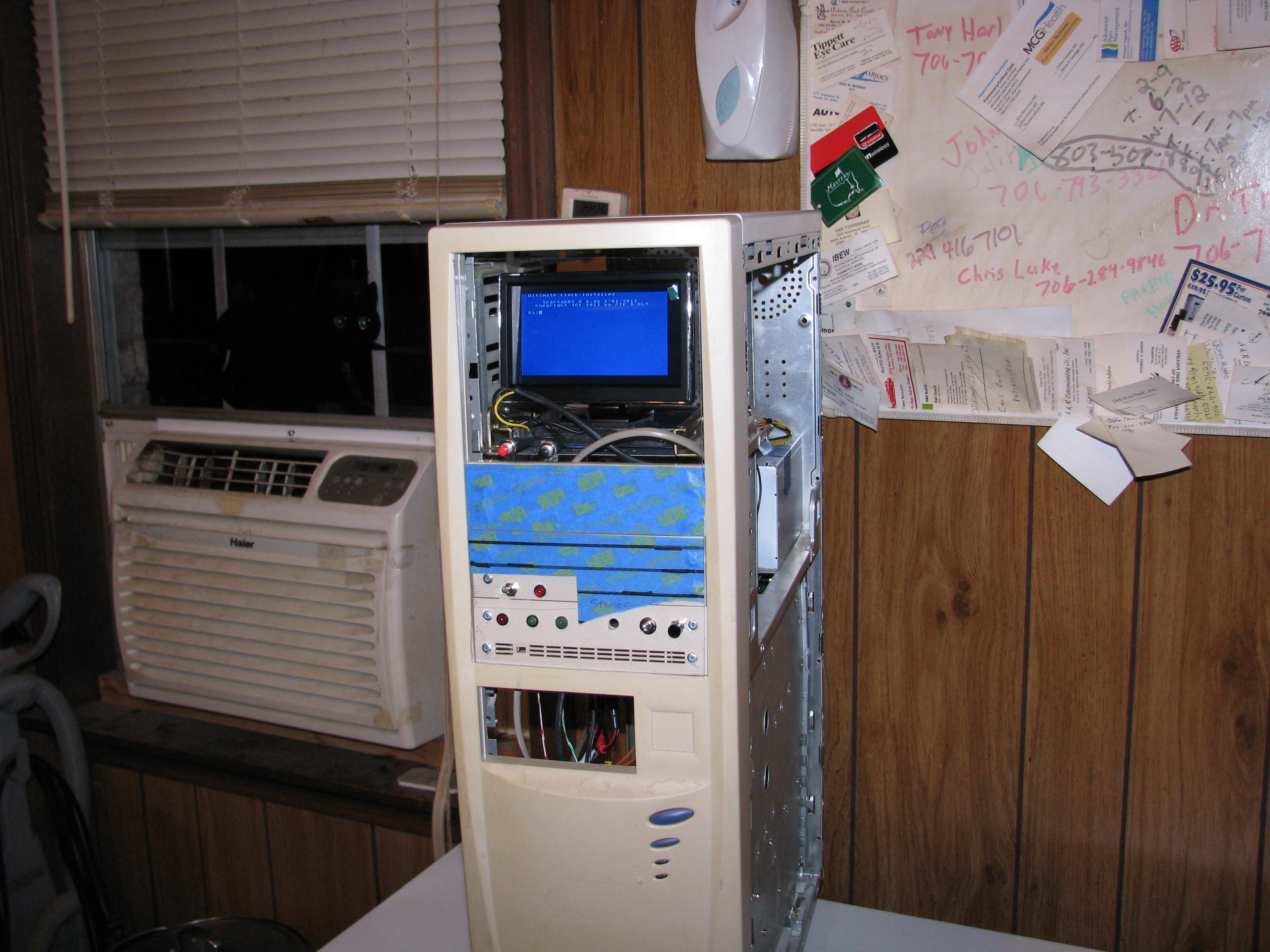

My Atari Tower

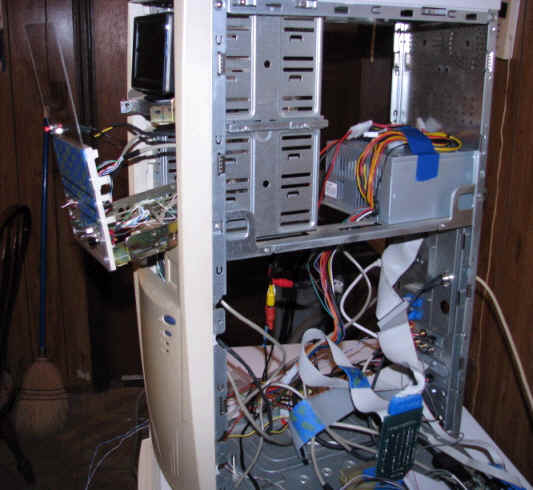

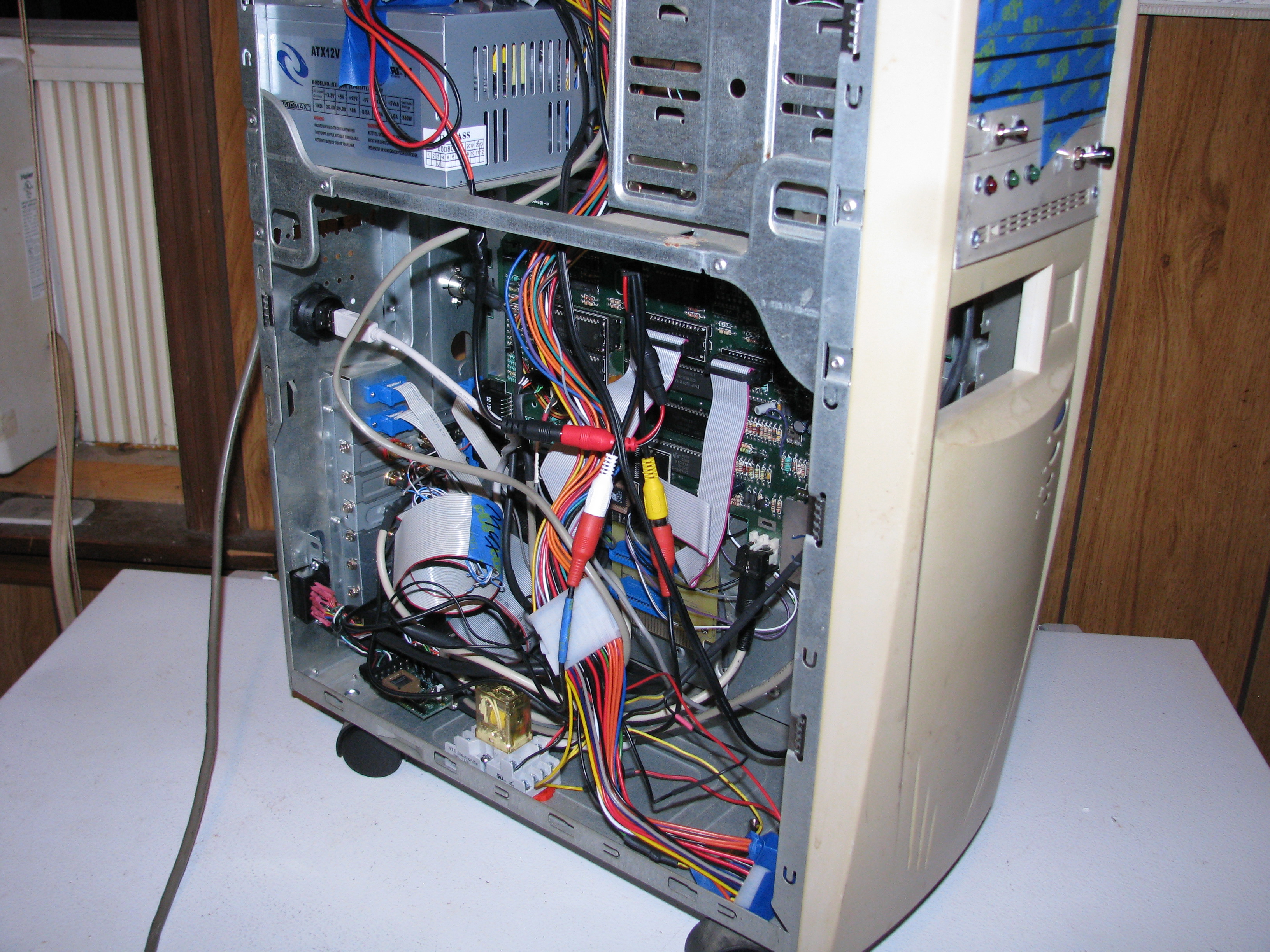

inside my Atari Tower

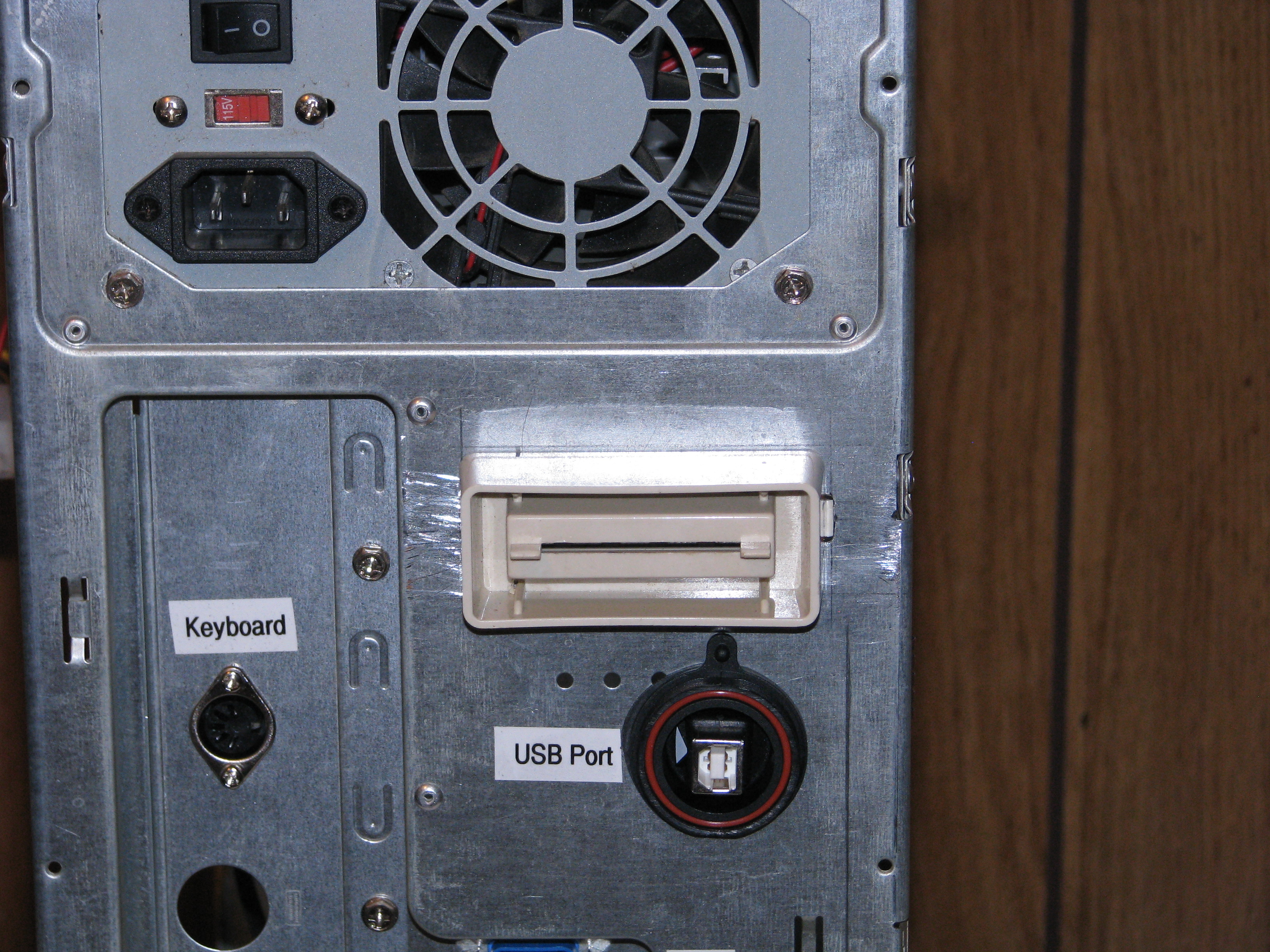

Ports on my Atari Tower

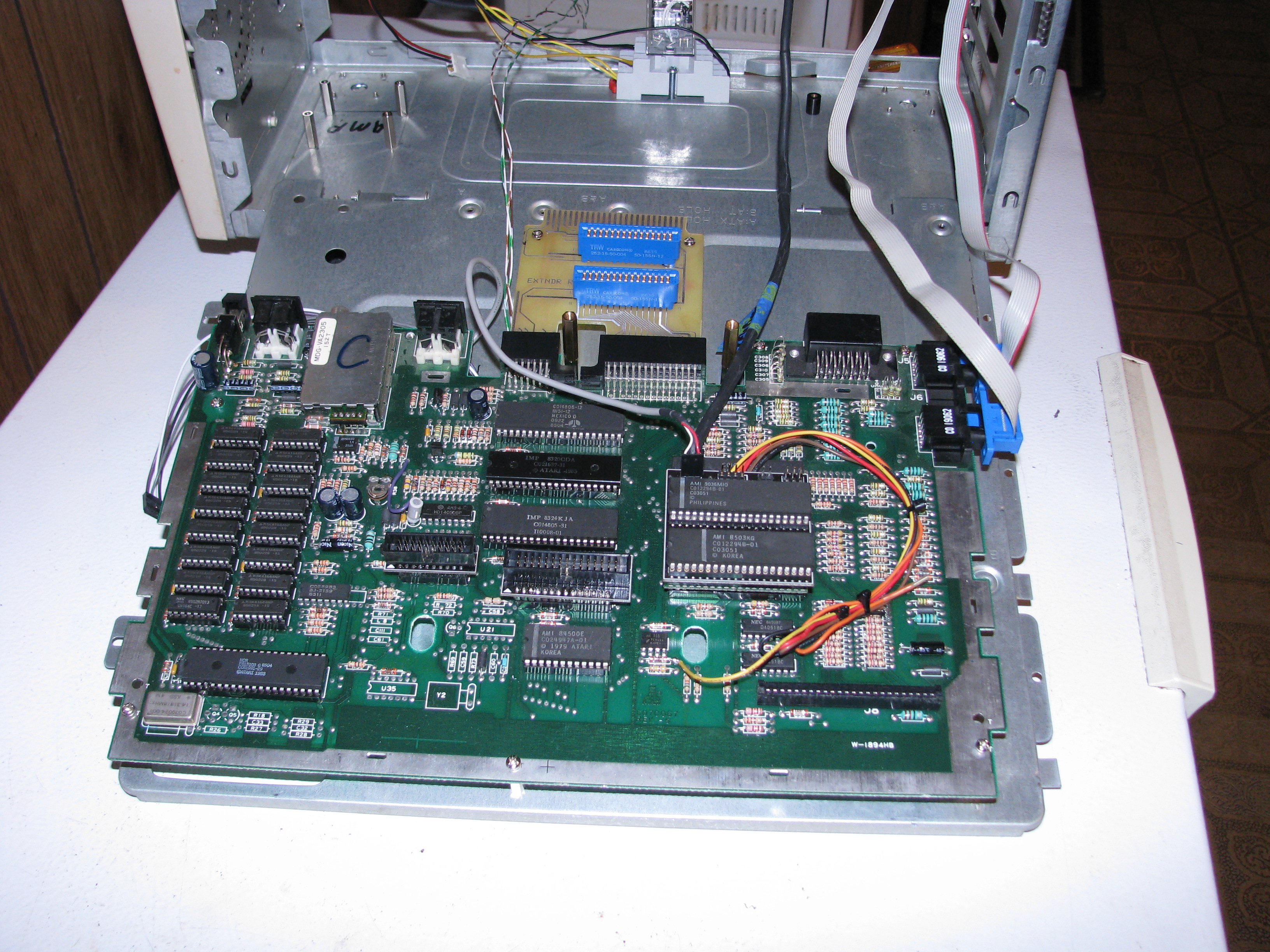

Atari Mother board installed in tower

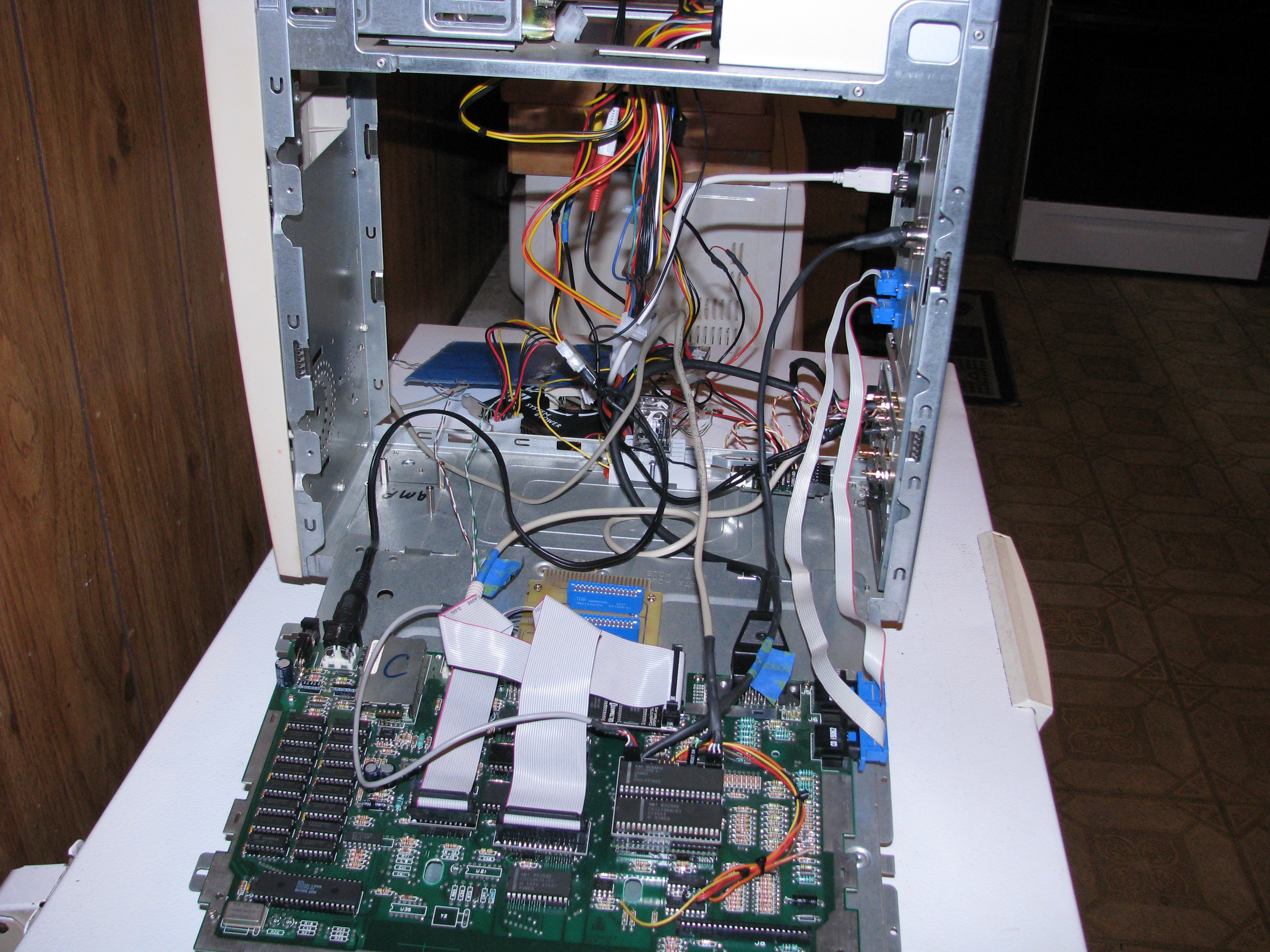

Atari Ultimate 1 Meg AKI keyboard Dual Pokey

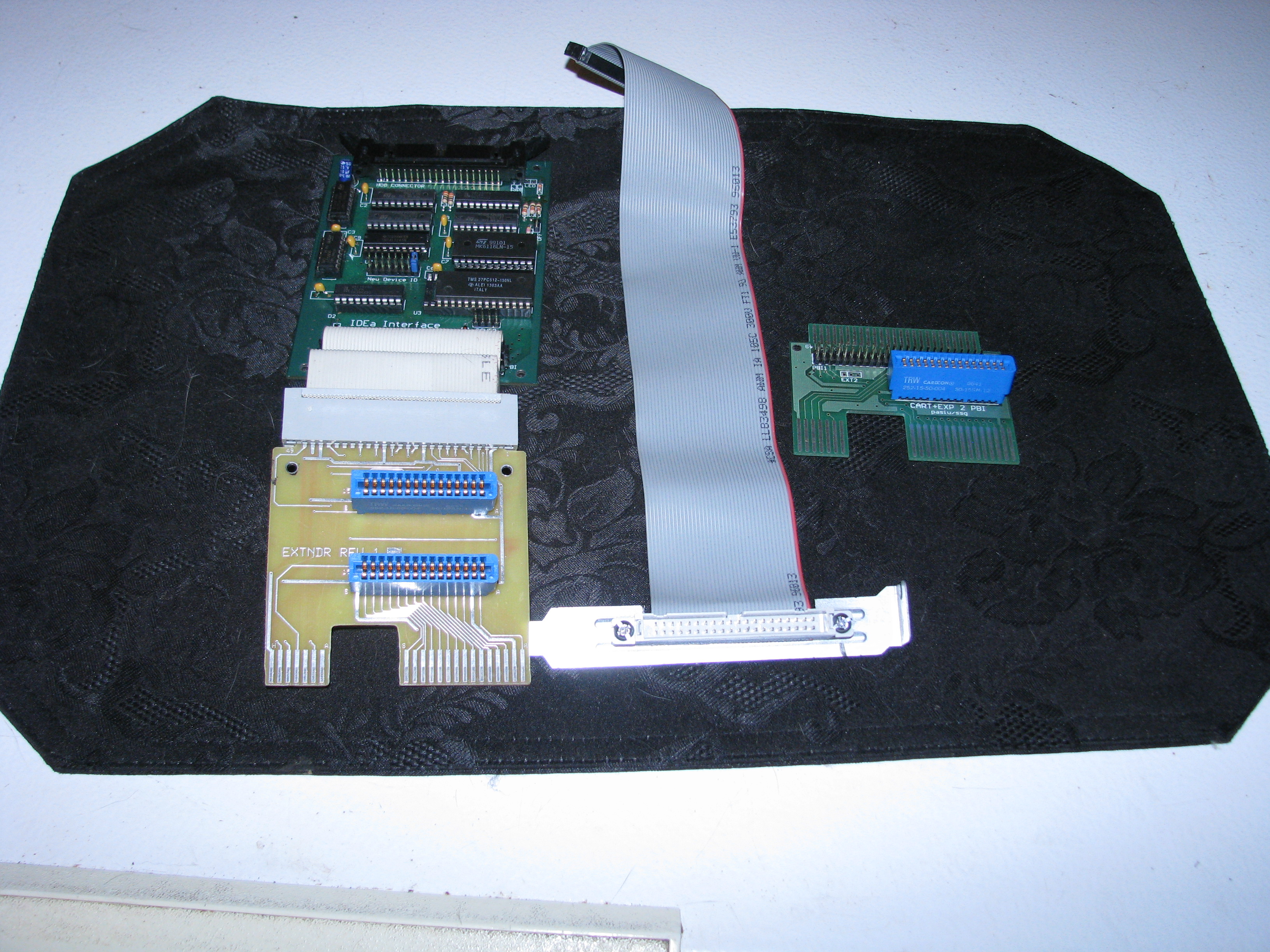

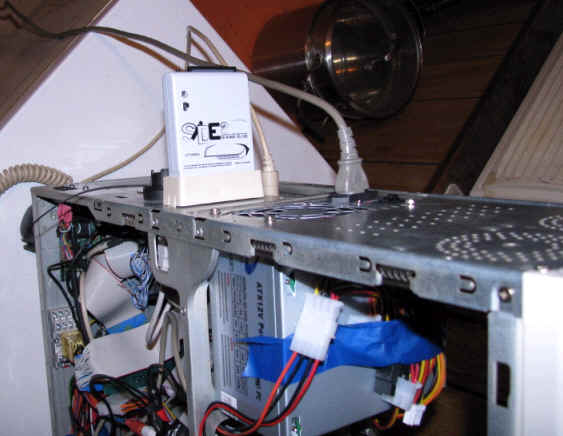

IDEa installed in Tower with ports

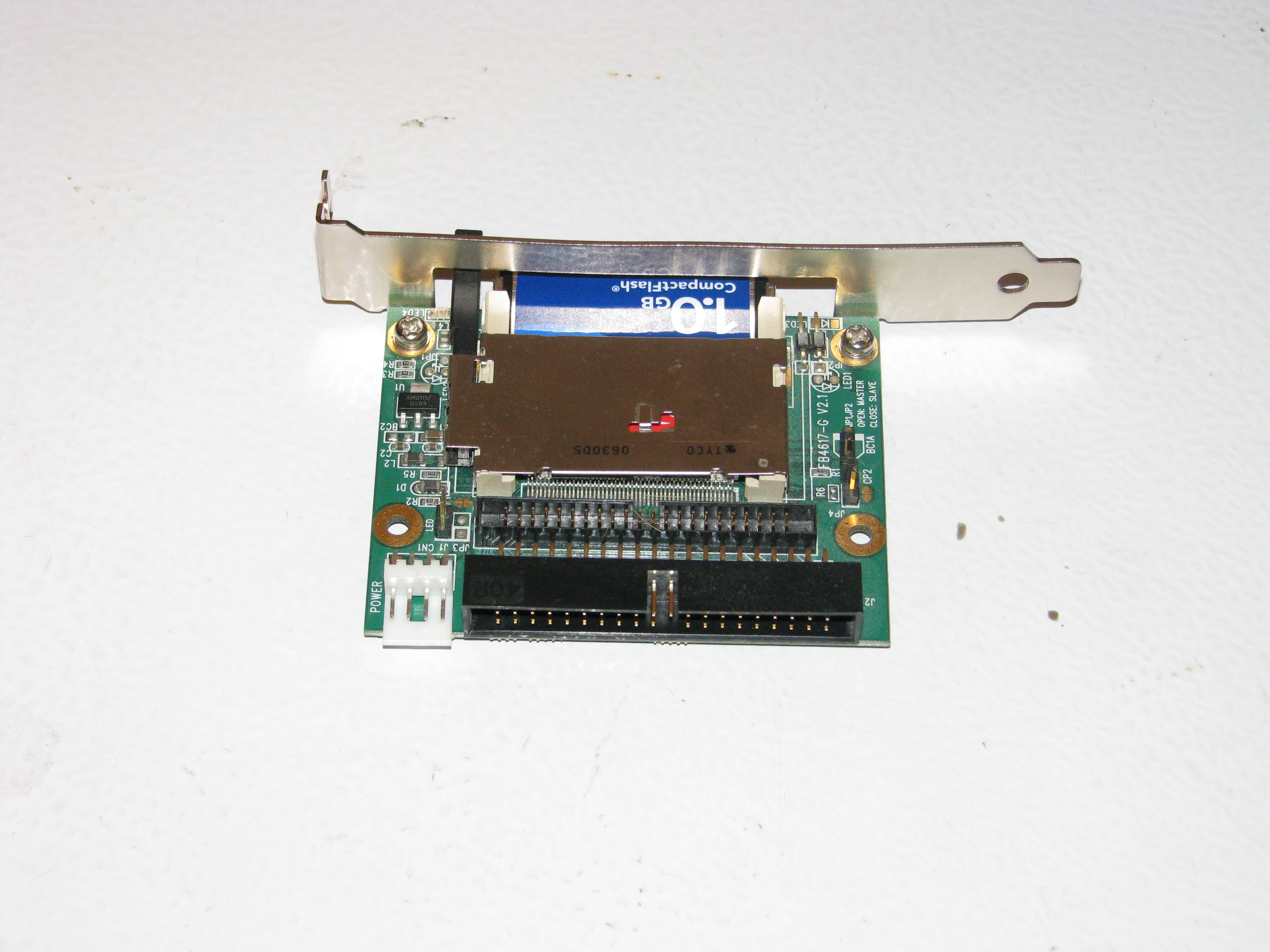

IDE Compact flash adapter

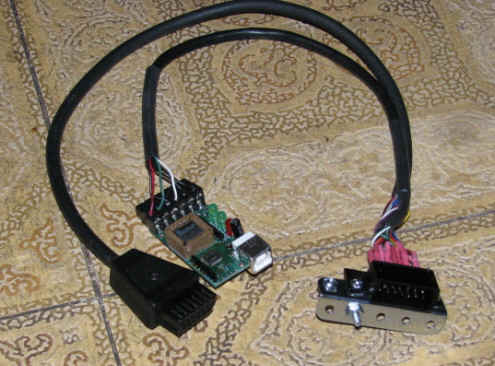

Atari SIO & SIO2PC cabling

5 in LCD Monitor installed in Tower

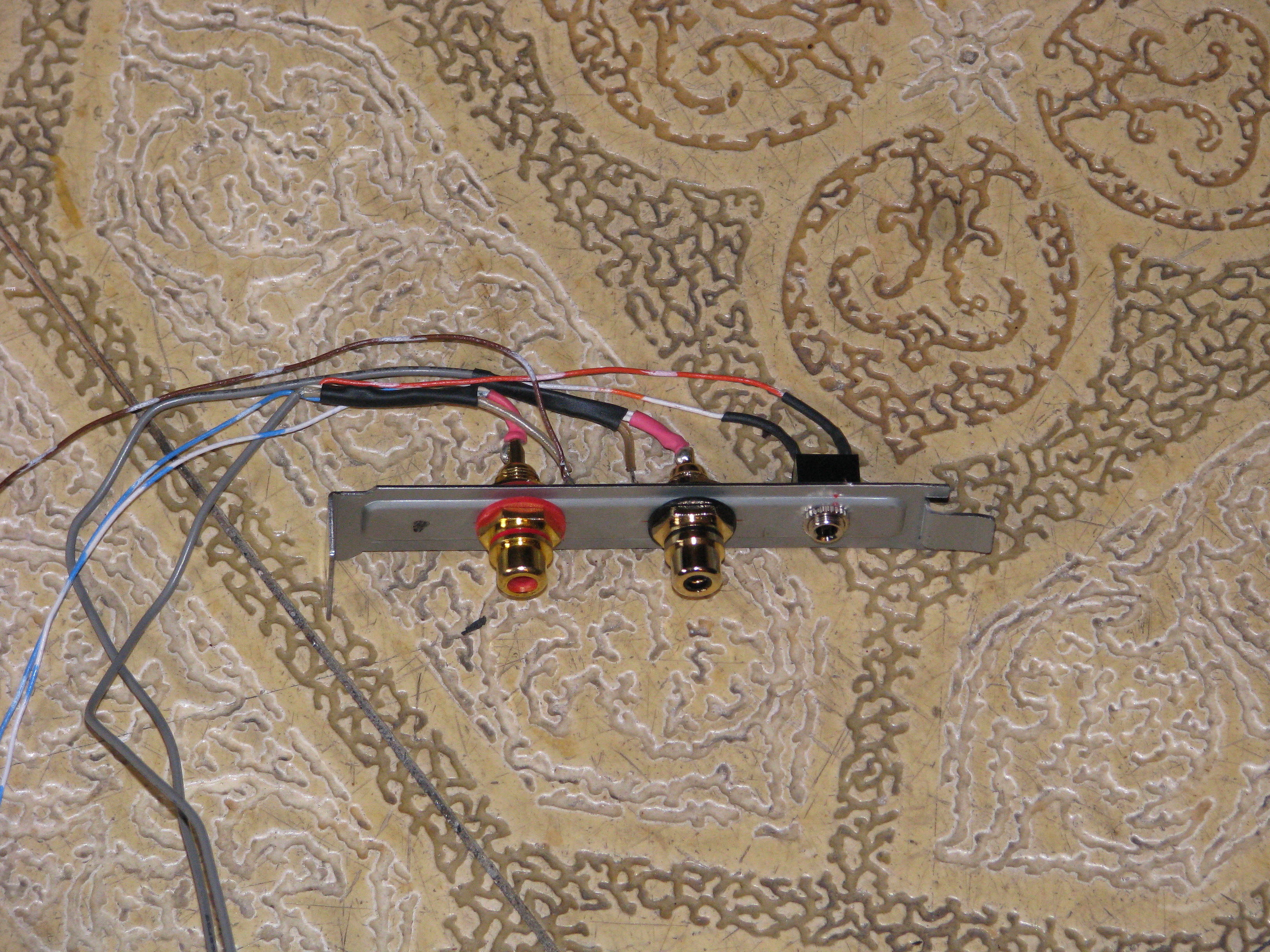

Stereo Dual Pokey Cable

Multiplexer setup in tower

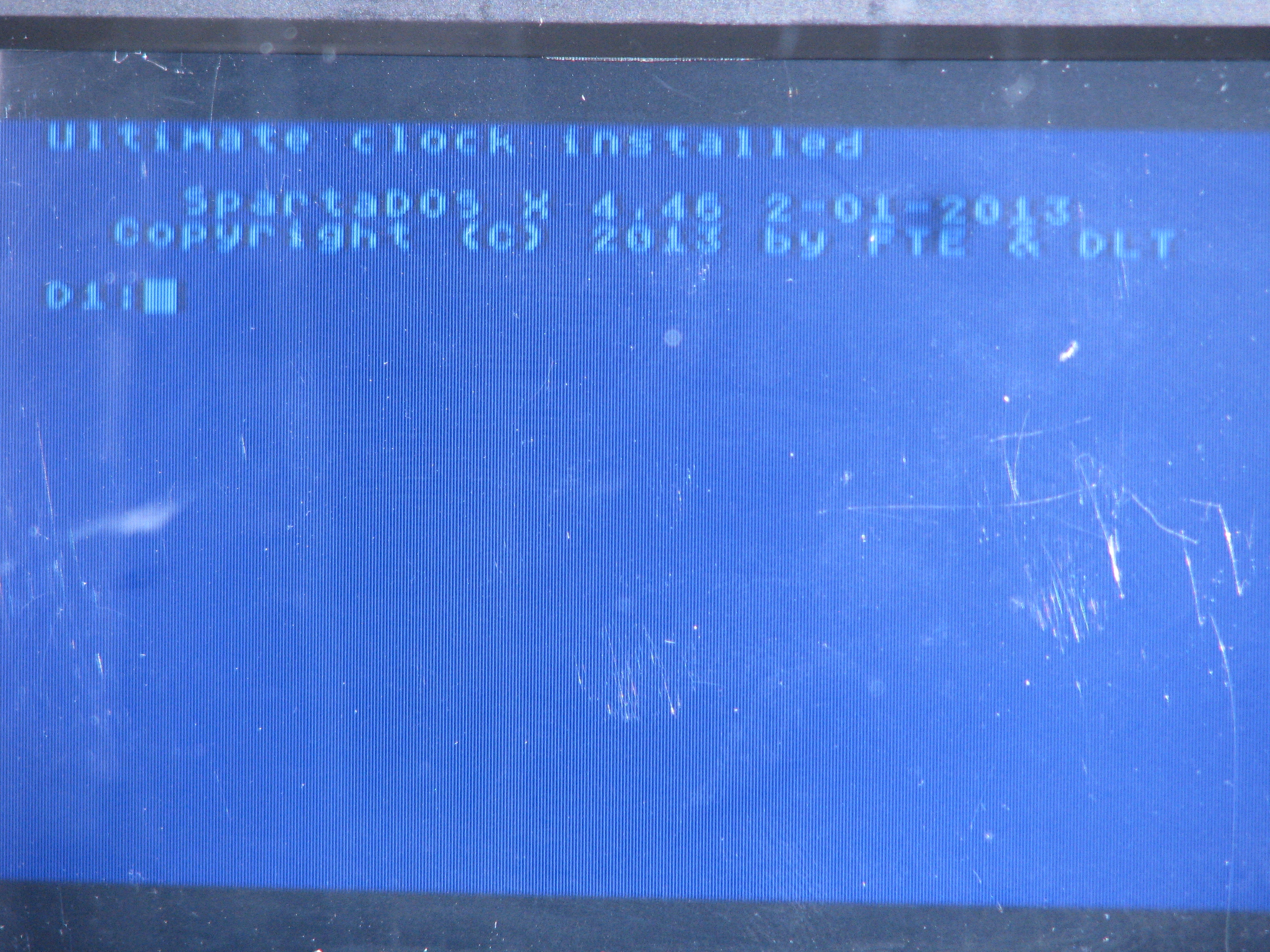

5 inch Monitor View

Monitor Cabling for tower

I had to build a custom Multiplexer cart to function as both a Master or Slave with the flip of a switch. I also needed the port at the top to act as an extension so I could mount a cartridge port on the back of the tower. I also have a switch that can turn the Multiplexer cart off/on but still pass the cart signals to the cart extension.







This is two 3 watt amp's to take the line signal and boost the stereo line and drive 2 small Speakers or a headset.

My Atx Power Supply!
