Iternal accelarator for 8bit ATARI XE/XL series.
* XL - special adapter needed - soon available from Lotharek here
Download:
rapidus.pdf
xegsmpd.zip
Install Document!

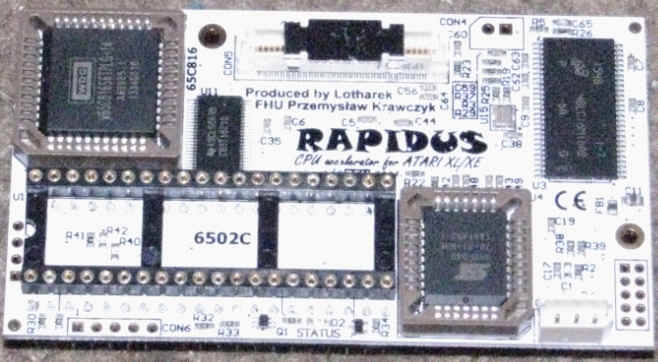

- Internal
CPU turbo card for Atari XE,
- WDC
65C816 microprocessor operating at 20
MHz !!!
- Managed
by Xilinx Spartan6 FPGA and XC95XL CPLD devices,
- 1024kb
of zero waitstate SRAM,
- Up
to 30.5MB of storage ram - SDRAM clocked 160
MHz !!!
- 512kB of
Flash memory (256kB is reserved for fpga cores, 256kB for OS and New
Device handler)
- 256b of
EEPROM,
- High
speed bus connector for external I/O interfaces, DMA support,
- Working
modes fully software controlled
- Low
power consumption due to DC/DC converters, no extra power supply required

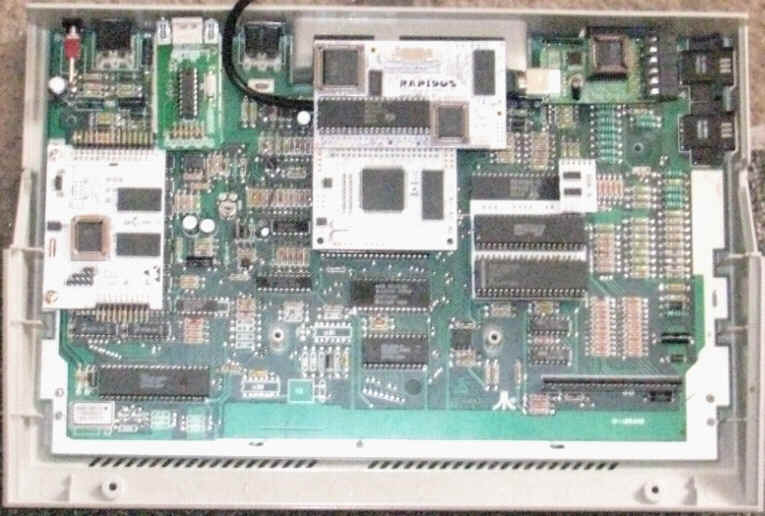

- Simple
installation: put Rapidus board in place of old 6502C and solder just 3
wires, or use Adaptus board depends on the model of your computer. In this
case you don’t have to solder any wires.
- Compatible
with Ultimate 1MB,
RapiDus T816 Processor Upgrade
